EC700 GENERAL VECTOR SERIES AC Drive Frequency Converter VFD
Production Introduction
The EC700 series general-purpose inverter is designed to meet diverse load requirements and multi-industry application scenarios fulfilling OEM customers’ demands for high-quality and high-performance products, Equipped with advanced control algorithms and modular functional configurations,it addresses the speed regulation and energy-saving needs of equipment across various industries Whether driving asynchronous motors or permanent magnet synchronous motors (PMSM), the EC700 series ensures precise control making it adaptable to a wide range of applications from simple machinery to high-precision automation systems.
Power Range
220V Level: 0.75-2.2kW380V Level: 0.75-400kW
Technical Features
1.Supports the through-wall installation method.
2.Three-proof coating and heat dissipation design
3. Dual expansion card slot design, with various optional expansion cards available.
4.Supports multiple encoders for precise control.
5.Asynchronous/PMSM dual-mode compatibility
6.Wide voltage input and has anti-interference ability.

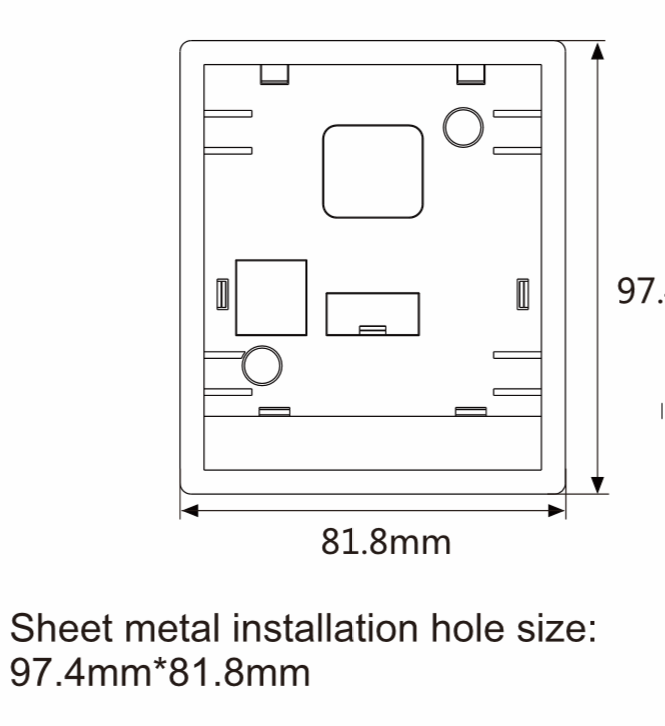

7.Multiple display keyboards are available for selection.
8. High-performance ARM processor with dedicated software upgrade tools
9. PID closed-loop process control.
10.Industrial protocol integration ( Modbus / Profinet /TCP/P ).
11. Multiple protection mechanisms to provide all-round protection.Product structure
-
